| Application | Throttling |

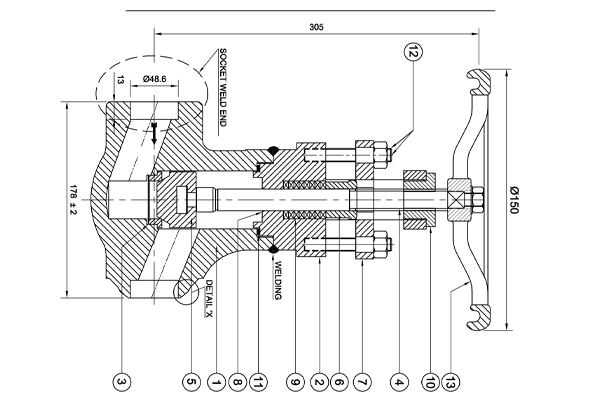

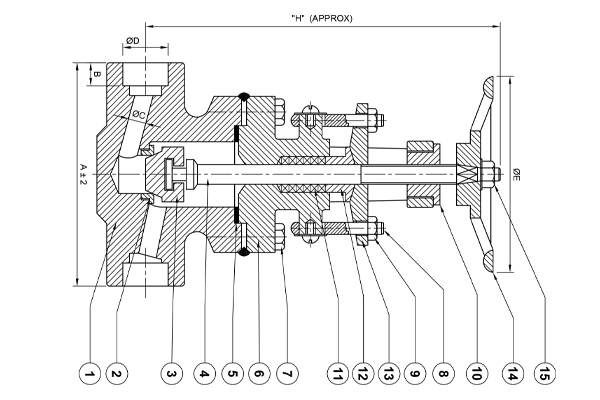

| Features / Benefit | OS & Y Construction Renewable Seat Rings & Integral Seat Rings Welded Bonnet on request for High Pressure |
| Ansi Class / Rating | 800#, 1500#, 2500# |
| Design Standard | BS 5352 |
| Testing Standard | ISO 5208, API 598 |
| Size | 15 mm to 50 mm |
| Materials | Body: A105, F9, F11, F22, F51, LF2, F304, F304L, F316, F316L Trim: 13 % Cr, Stellite etc |

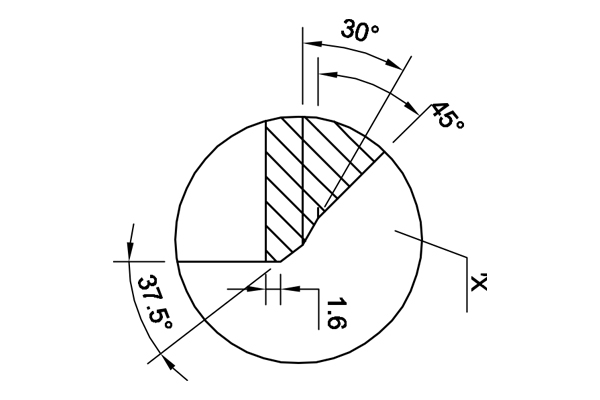

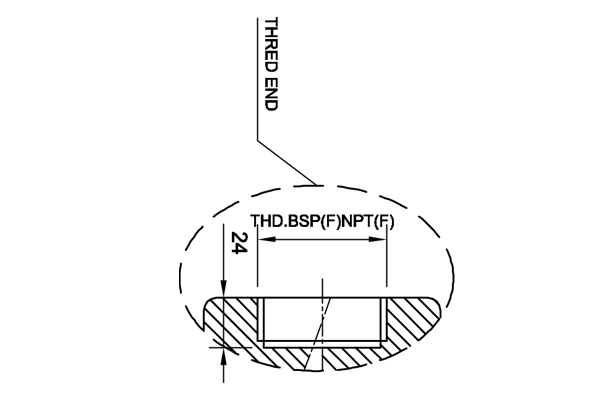

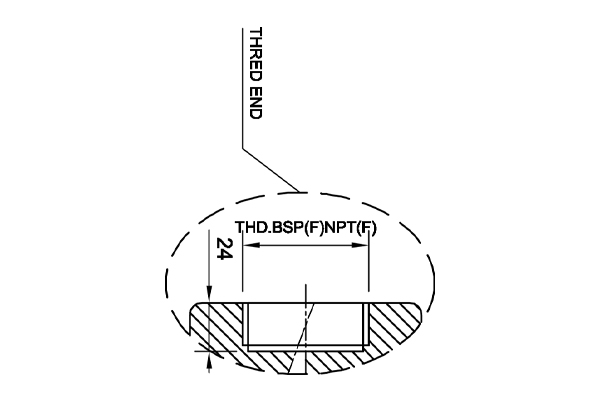

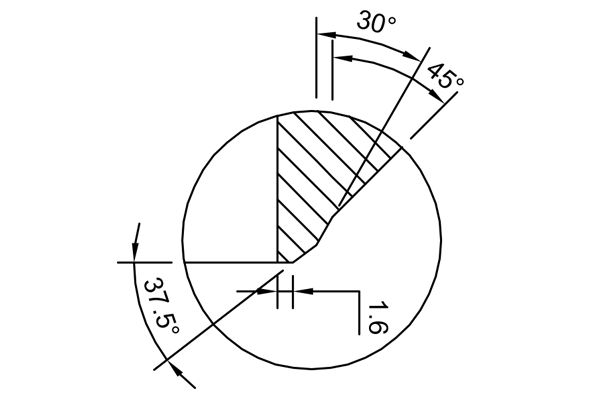

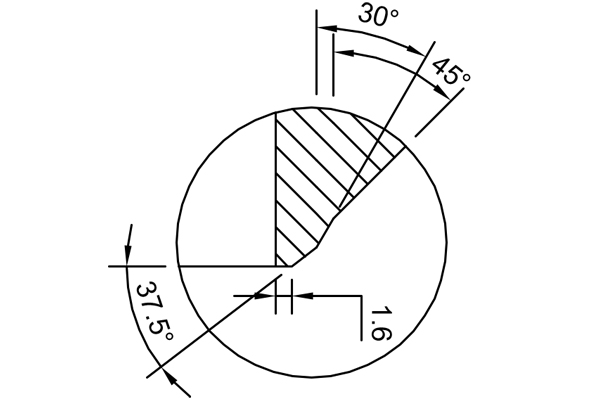

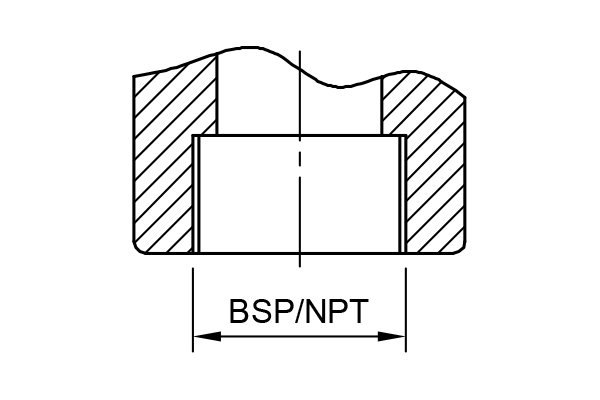

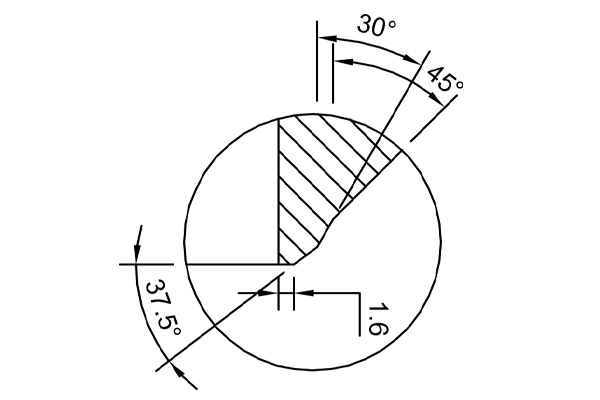

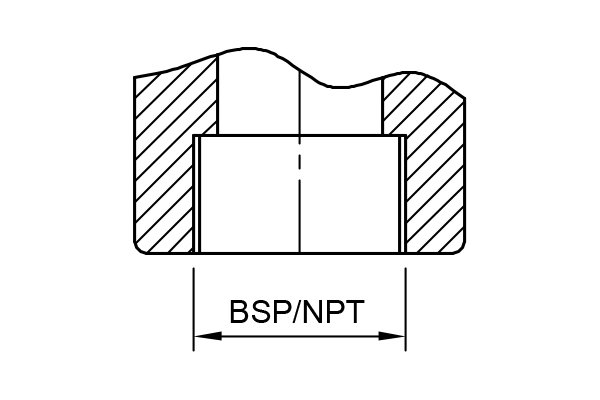

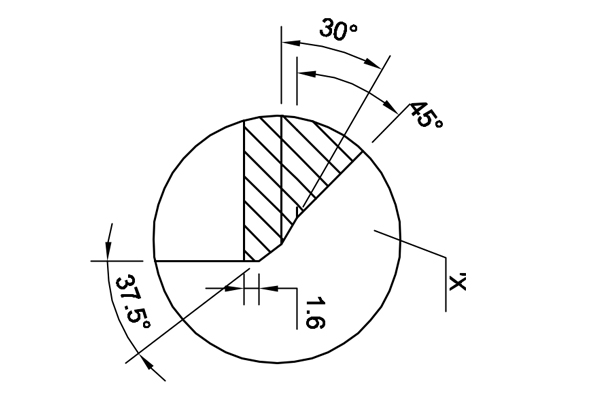

| Ends | Screwed End, Socket Weld End, Butt Weld End |
| Operation | Manual, Electric |
